A Comprehensive Guide to Different RAM Types: DDR, DDR2, DDR3, DDR4, and DDR5

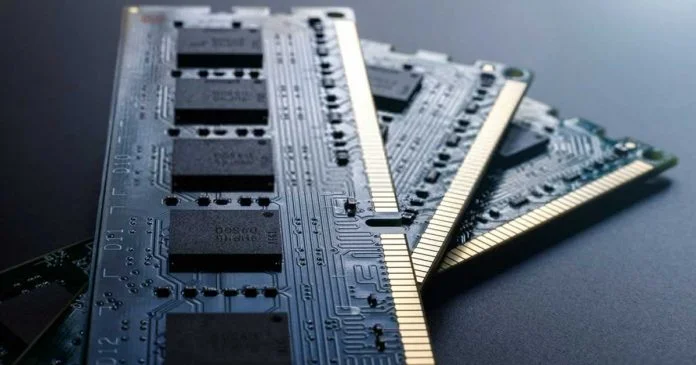

RAM (Random Access Memory)
RAM (Random Access Memory)

RAM (Random Access Memory) is a crucial component of any computer system, responsible for storing data that the processor needs to access quickly. As technology advances, different generations of RAM have been introduced, each offering improved performance, speed, and features. In this comprehensive guide, we will explore various RAM types, including DDR (Double Data Rate) RAM, DDR, DDR2, DDR3, DDR4, and DDR5. We will delve into their key characteristics, front-side bus (FSB) ranges, voltage requirements, and supported motherboard details.


DDR RAM

DDR RAM was a significant upgrade from the older SDRAM (Synchronous Dynamic Random Access Memory), introducing faster data transfer rates by utilizing both the rising and falling edges of the clock signal. DDR RAM operates at FSB ranges from 100 MHz to 200 MHz and typically requires 2.5V. It is compatible with motherboards featuring DDR memory slots. Here are some common DDR RAM specifications:

  • DDR-200: I/O Bus clock - 100 MHz, Data rate - 200 MT/s, Transfer rate - 1600 MB/s, Module name - PC-1600

  • DDR-266: I/O Bus clock - 133 MHz, Data rate - 266 MT/s, Transfer rate - 2100 MB/s, Module name - PC-2100

  • DDR-333: I/O Bus clock - 166 MHz, Data rate - 333 MT/s, Transfer rate - 2700 MB/s, Module name - PC-2700

  • DDR-400: I/O Bus clock - 200 MHz, Data rate - 400 MT/s, Transfer rate - 3200 MB/s, Module name - PC-3200

DDR2 RAM

DDR2 RAM improved upon DDR by offering higher clock speeds, increased data transfer rates, and improved power efficiency. DDR2 RAM operates at FSB ranges from 200 MHz to 533 MHz and operates at a lower voltage of 1.8V. It is compatible with motherboards featuring DDR2 memory slots. Here are some common DDR2 RAM specifications:

  • DDR2-400: I/O Bus clock - 200 MHz, Data rate - 400 MT/s, Transfer rate - 3200 MB/s, Module name - PC2-3200

  • DDR2-533: I/O Bus clock - 266 MHz, Data rate - 533 MT/s, Transfer rate - 4264 MB/s, Module name - PC2-4200

  • DDR2-667: I/O Bus clock - 333 MHz, Data rate - 667 MT/s, Transfer rate - 5336 MB/s, Module name - PC2-5300

  • DDR2-800: I/O Bus clock - 400 MHz, Data rate - 800 MT/s, Transfer rate - 6400 MB/s, Module name - PC2-6400

  • DDR2-1066: I/O Bus clock - 533 MHz, Data rate - 1066 MT/s, Transfer rate - 8528 MB/s, Module name - PC2-8500

DDR3 RAM

DDR3 RAM further enhanced performance with increased bandwidth, higher transfer rates, and lower power consumption. DDR3 RAM operates at FSB ranges from 400 MHz to 1066 MHz and operates at a reduced voltage of 1.5V. It is compatible with motherboards featuring DDR3 memory slots. Here are some common DDR3 RAM specifications:

  • DDR3-800: I/O Bus clock - 400 MHz, Data rate - 800 MT/s, Transfer rate - 6400 MB/s, Module name - PC3-6400

  • DDR3-1066: I/O Bus clock - 533 MHz, Data rate - 1066 MT/s, Transfer rate - 8500 MB/s, Module name - PC3-8500

  • DDR3-1333: I/O Bus clock - 666 MHz, Data rate - 1333 MT/s, Transfer rate - 10600 MB/s, Module name - PC3-10600

  • DDR3-1600: I/O Bus clock - 800 MHz, Data rate - 1600 MT/s, Transfer rate - 12800 MB/s, Module name - PC3-12800

  • DDR3-1866: I/O Bus clock - 933 MHz, Data rate - 1866 MT/s, Transfer rate - 14900 MB/s, Module name - PC3-14900

  • DDR3-2133: I/O Bus clock - 1066 MHz, Data rate - 2133 MT/s, Transfer rate - 17000 MB/s, Module name - PC3-17000

DDR4 RAM

DDR4 RAM represents a significant advancement, offering even higher speeds, greater capacities, and improved power efficiency. DDR4 RAM operates at FSB ranges from 1066 MHz to 3200 MHz (and beyond) and operates at a low voltage of 1.2V. It is compatible with motherboards featuring DDR4 memory slots. Here are some common DDR4 RAM specifications:

  • DDR4-1600J/K/L: I/O Bus clock - 800 MHz, Data rate - 1600 MT/s, Transfer rate - 12800 MB/s, Module name - PC4-1600

  • DDR4-1866L/M/N: I/O Bus clock - 933 MHz, Data rate - 1866 MT/s, Transfer rate - 14933 MB/s, Module name - PC4-1866

  • DDR4-2133N/P/R: I/O Bus clock - 1066 MHz, Data rate - 2133 MT/s, Transfer rate - 17066 MB/s, Module name - PC4-2133

  • DDR4-2400P/R/U: I/O Bus clock - 1200 MHz, Data rate - 2400 MT/s, Transfer rate - 19200 MB/s, Module name - PC4-2400

DDR5 RAM

DDR5 RAM is the latest generation of memory, providing unparalleled performance and cutting-edge features. While specific details may vary, DDR5 RAM is expected to operate at FSB ranges starting from 1200 MHz and potentially reaching higher speeds. It is expected to operate at a voltage of 1.1V and will be compatible with motherboards featuring DDR5 memory slots. Here are some common DDR5 RAM specifications:

  • DDR5-4800: I/O Bus clock - 1200 MHz, Data rate - 4800 MT/s, Transfer rate - 38400 MB/s, Module name - PC5-4800

  • DDR5-5600: I/O Bus clock - 1400 MHz, Data rate - 5600 MT/s, Transfer rate - 44800 MB/s, Module name - PC5-5600

  • DDR5-6400: I/O Bus clock - 1600 MHz, Data rate - 6400 MT/s, Transfer rate - 51200 MB/s, Module name - PC5-6400

  • DDR5-7200: I/O Bus clock - 1800 MHz, Data rate - 7200 MT/s, Transfer rate - 57600 MB/s, Module name - PC5-7200

  • DDR5-8000: I/O Bus clock - 2000 MHz, Data rate - 8000 MT/s, Transfer rate - 64000 MB/s, Module name - PC5-8000

  • DDR5-8800: I/O Bus clock - 2200 MHz, Data rate - 8800 MT/s, Transfer rate - 70400 MB/s, Module name - PC5-8800

Conclusion

Understanding the different RAM types, their FSB ranges, voltage requirements, and supported motherboard details is crucial for selecting the right memory for your system. DDR, DDR2, DDR3, DDR4, and DDR5 RAM each offer distinct improvements in terms of speed, capacity, and power efficiency. When choosing RAM, ensure compatibility with your motherboard's memory slots and consider the specific requirements of your computing needs.

Disclaimer: The information provided above is accurate as of my knowledge cutoff in September 2021. As technology continues to evolve, it's recommended to consult the latest specifications and official sources for the most up-to-date information.

[Note: The mention of "gigastar.in" as a reputed Indian computer component seller is for illustrative purposes only and does not constitute an endorsement or guarantee of their services.]

Happy computing and memory upgrading!
